Pacific Arc, Architect & Engineer, Color Coded Triangular Scale Rulers w/ Acid Etched Markings.
Size
Scale Type

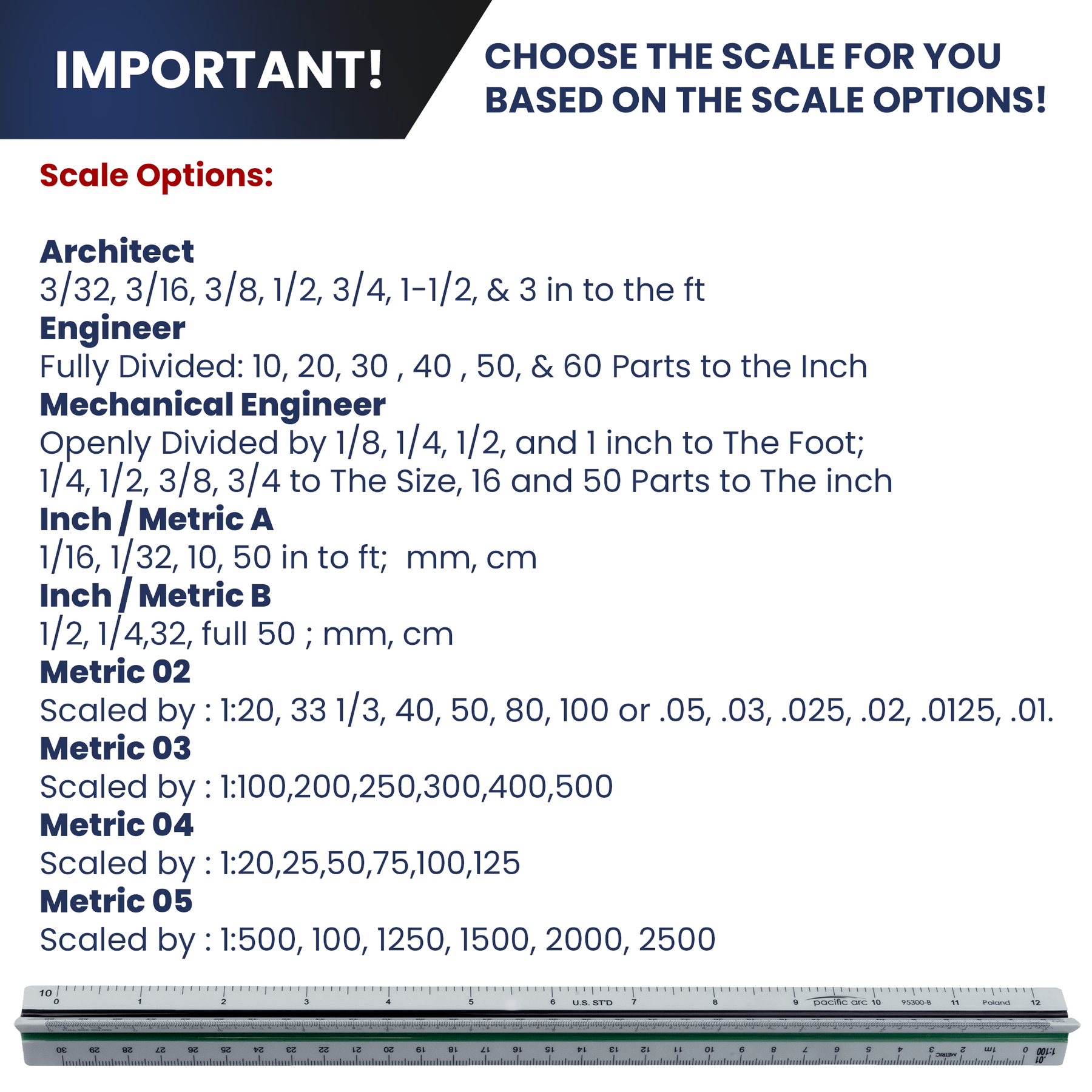

IMPORTANT!
CHOOSE SCALE FOR YOU!! USE CHART!
Made with high quality heavy plastic, this scale is perfect for the drafting engineer, architect, or student on the go.
- Color Coded Scholastic triangular scales for easy use.
- High quality plastic promises strength and demonstrates long-lasting calibers.
- Available in inches and metric.
Scale Options:
Architect: Open divided by: 1/16th inch, 3/32 inch, 1/8 inch, 3/16 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1-1/2 inch, 3 inch scale
Engineer: Fully divided by: 10, 20, 30, 40, 50, 60 scale to the inch
Mechanical Engineer: Open divided by: 1/8, 1/4, 1/2, and 1 inch to the foot; 1/4, 1/2, 3/8, 3/4 to the size. Also fully divided by 16 and 50 parts to the inch.
Metric 01: 1/100, 200, 300, 400, 500, 600
Metric 02: 1:20,33 1/3, 40, 50, 80, 100 or .05, .03, .025, .02, .0125, .01
Metric 03: 1:100, 200, 250, 300, 400, 500
Metric 04: 1:20, 25, 50, 75, 100, 125
Metric 05: 1:500, 1000, 1250, 1500, 2000, 2500
Metric 06: 1:1, 2, 25, 50, 75, 125
Metric 08: 1: 2 1/2, 5, 10, 20, 50, 100
Metric 14: 1:20, 25, 33N, 50, 75, 100
Inch/metric B : Inch: 1/16, 1/32, 10, & full 50; metric: 0.1, 1:10, 50

Triangular Scale
These triangular scales come in architecture or engineering measurements.

Color-Coded Grooves
A quick and easy way to find the scale you need. Ideal for work, learning, and hobbies.

Multi-Use Ruler
These rulers are perfect for line art, drafting, measuring, and educational projects.

Perfect for Professionals
Ideal for architects, engineers, students, and contractors to precise great work.
