Pacific Arc
Pacific Arc Electrical Template Guide, perfect for layouts and drafting for architects, draftsmen, students, and artists
Stencil/Cut shape:
Stencil/Cut shape
Quantity:

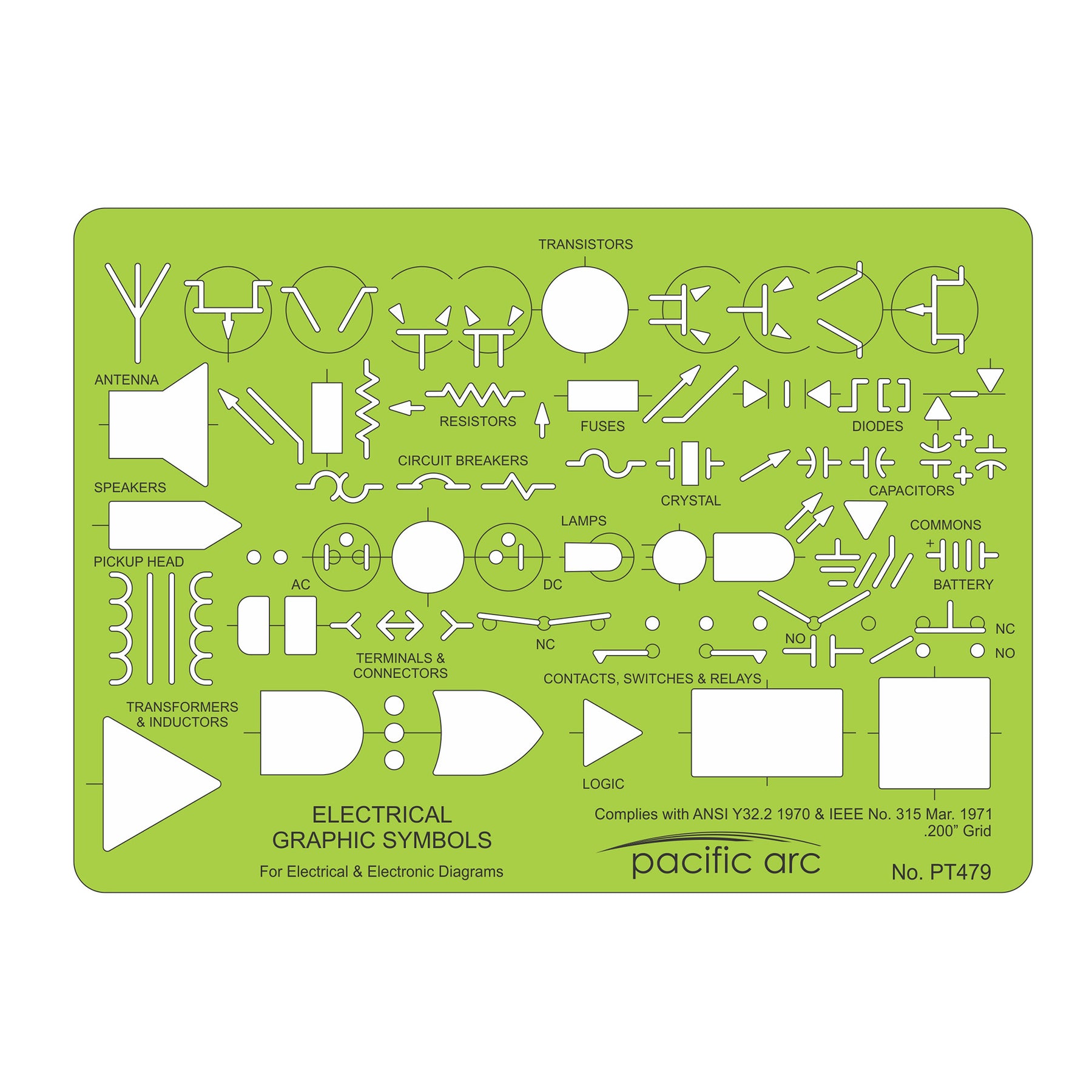

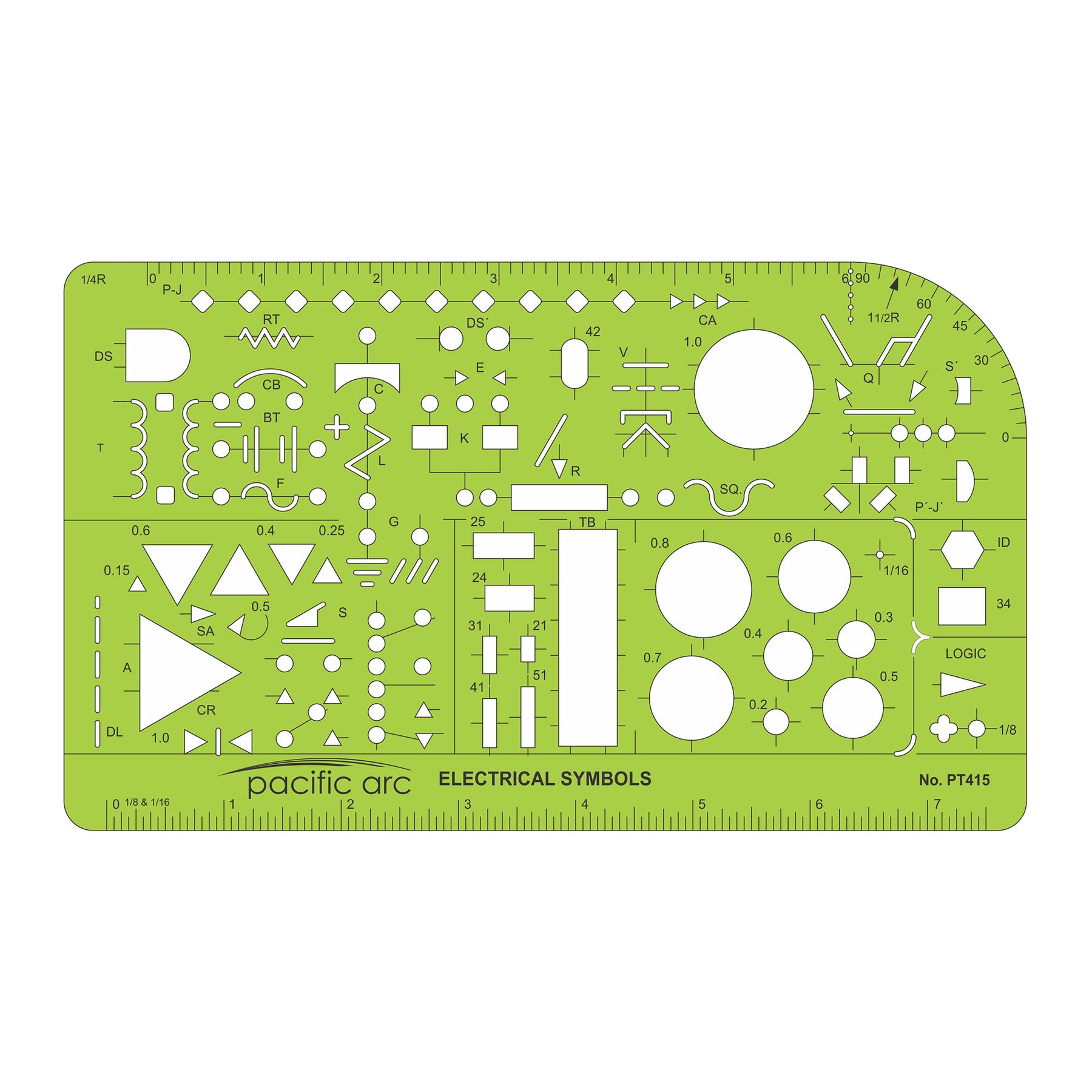

- COMPREHENSIVE TEMPLATE - Taking symbols from ANSI Y32.2, these templates feature all the major electrical symbols. Perfect for drafting electrical plans. Its compact size is perfect for travel.
- COMPACT DESIGN - This compact design is perfect for drawing designs on the go. Able to fit in any work bag so you'll never be without this template. Made in correct relative size for photographic reproduction.
- MADE OF HIGH QUALITY PLASTIC - The translucent see through green plastic makes it easy to create your exact shape without drawing in the wrong place. It's convenient size makes it the perfect travel template for any professional or student. works on many surfaces including paper, vellum, fabric, canvas, wood, and mylar.
- THE PERFECT GIFT - Gift this shape stencil to the artist in your life. Give them a practical, memorable gift that will further their creativity to the next level.
The Pacific Arc Electrical Template Guides are the ideal guide for drafting, drawing, plans, and sketches. Made of a strong translucent green plastic, these templates are perfect for use on any surface and will not obscure the surface you are working on. Available in different styles for landscaping, architecture, plumbing, lettering, electrical, and circles.
